YOU'VE SEEN IT AT THE RACES, NOW'S THE CHANCE TO MAKE YOUR DREAMS A REALITY.
-
DESCRIPTION

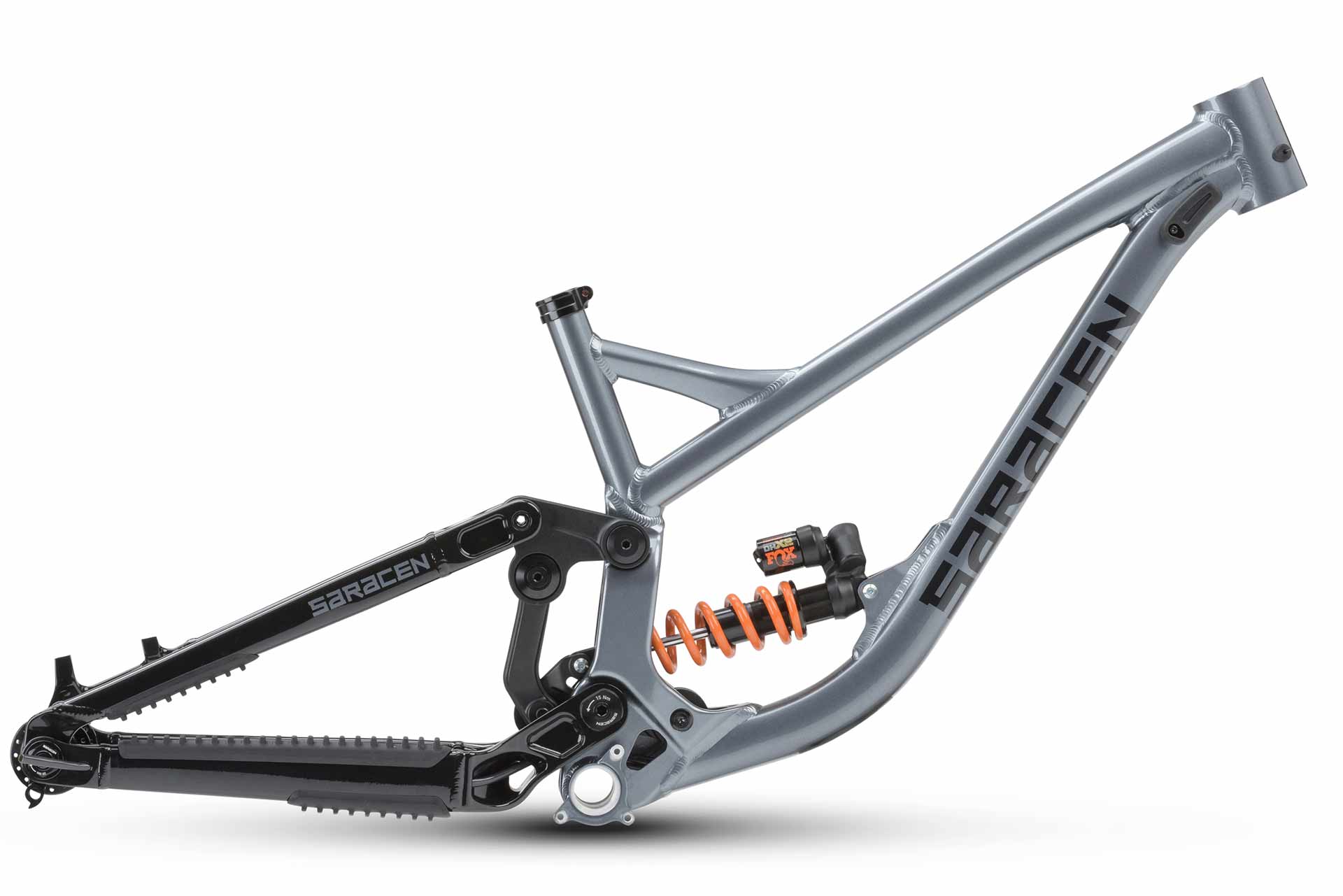

From the Madison Saracen Factory Racing team pits, to your filthy mitts the all new Myst is faster than ever and available to buy.
Our frame-only option means you get to create the perfect custom build, with the chance to hand-pick every component.
With the first prototypes raced throughout the 2023 season and after multiple frame and linkage modifications, the bike is Factory Team approved.So what’s changed? We’ve moved the shock to get the centre-of-gravity as low as possible for that planted feeling. And we’ve created a new link.
Our Tuned Ride link allows the suspension to be more active under braking, giving more traction when you need it most.Talking of suspension, this frameset includes the top-tier Fox DHX2 Factory coil shock, which is the perfect starting point to go off the deep end and build this frame up with a drool-inducing and bank-crushing spec.
-
DETAILS
- Variant: Medium
- Weight: 4.27 kg
Series 3 custom butted and hydroformed 6013 alloy
ALUMINIUM FRAME
200mm
FRAME TRAVEL
200mm
RECOMMENDED FORK TRAVEL
Mullet 29'' front 27.5'' rear
WHEEL SIZE
Fox DHX2 Factory
SHOCK
Full Specifications
-
FRAME: SERIES 3 CUSTOM BUTTED AND HYDROFORMED 6013, OPTIMISED FACTORY RACING SIZING
Headtube
Custom headtube with adjustable front offset plus-minus 5mm
Bearings
37mm main pivot bearings / 28mm linkage bearings
Linkage
CNC custom mullet links
Suspension
Signature TRL suspension design
Cable Routing
Internal cable routing and integrated fork bump-stops
Axle
12 x 157mm rear axle
Rear Travel
211mm
-
FORK: 200MM RECOMMENDED
Steerer
Tapered steerer
Axle
20TAx110 DH
Rake
56mm
-
REAR SHOCK: FOX DHX2 FACTORY
Adjustment
SLS spring / low and high speed compression, low and high speed rebound
Spring Weight
500lbs/in
Length / Stroke
250 x 75
- BOTTOM BRACKET: BSA 83MM
- CHAIN DEVICE: ISCG-05
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
Please be advised that this sizing chart is designed as a rough guide to help you select the size you require. Although height is one key factor on choosing the correct size bike, there are others which are discussed in our in-depth size guide feature.
Geometry
- 1251MM
- Wheelbase
SEAT TUBE |
410mm |
|---|---|
TOP TUBE |
596mm |
FRAME REACH |
455mm |
FRAME STACK |
615mm |
HEAD TUBE |
90mm |
HEAD ANGLE |
63.0° |
SEAT ANGLE |
76.5° |
CHAINSTAY |
450mm |
BB DROP |
9mm |
WHEELBASE |
1279mm |
SEAT TUBE |
410mm |
TOP TUBE |
621mm |
FRAME REACH |
485mm |
FRAME STACK |
624mm |
HEAD TUBE |
100mm |
HEAD ANGLE |
63.0° |
SEAT ANGLE |
76.5° |
CHAINSTAY |
450mm |
BB DROP |
9mm |
WHEELBASE |
1311mm |
SEAT TUBE |
410mm |
TOP TUBE |
649mm |
FRAME REACH |
505mm |
FRAME STACK |
633mm |
HEAD TUBE |
110mm |
HEAD ANGLE |
63.0° |
SEAT ANGLE |
76.5° |
CHAINSTAY |
450mm |
BB DROP |
9mm |
WHEELBASE |
1334mm |
