BUILT FOR THE NEXT GENERATION OF DH SUPERSTARS, THE ARIEL JUNIOR USES A SCALED-DOWN VERSION OF THE ADULT BIKE FOR RIDERS BETWEEN SEVEN AND NINE.
-
DESCRIPTION
- Frame
- Series 3 custom butted 6013 aluminium
- Frame Travel
- 120mm
- Fork Travel
- 120mm
- Wheel Size
- 24"
- Fork
- X-Fusion Velvet RL2
- Shock
- X-Fusion 02 PRO R
- Drivetrain
- 1 x 11 Sram NX
Explore the Features of Ariel Junior

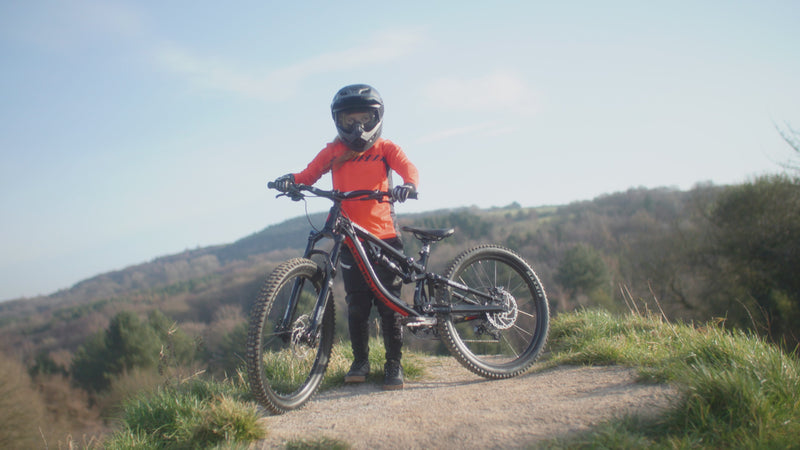

Built for the next downhill superstar.
The Saracen Ariel JNR uses a scaled-down version of our fully-fledged Ariel, so you know it's got what it takes to tackle the toughest trails out there.
Designed for serious young riders aged from seven to nine, we've gone for a 24-inch wheel and 120mm of travel - a perfect fit for riders 125-145cm tall.
Please note - the Saracen Ariel JNR does not come supplied with pedals. Add some from our gear store!
-
DETAILS
- SKU: RN23570
SKU: RN23570
Variant: Default Title
Series 3 custom butted 6013
ALUMINIUM FRAME
120mm
FRAME TRAVEL
120mm
FORK TRAVEL
24''
WHEEL SIZE
X-Fusion Velvet RL2
FORK
X-Fusion 02 PRO R
SHOCK
1 x 11 Sram NX
DRIVETRAIN
Full Specifications
-
FRAME: SERIES 3 CUSTOM BUTTED AND HYDROFORMED 6013 ALLOY FRONT TRIANGLE AND SWINGARM
Headtube
ZS44-ZS56 tapered headtube
Bearings
37mm main pivot bearings / 28mm linkage bearings
Suspension
Signature TRL suspension design
Cable Routing
Internal
Axle
12 x 142mm dropout system
Rear Travel
120mm
-
FORK: X-FUSION VELVET RL2
Travel
120mm
Technology
Tapered steerer / rebound adjust / RL2 damper / Lockout
Axle
15x100
Rake
41mm
-
REAR SHOCK: X-FUSION 02 PRO R
Adjustment
rebound adjust
Length / Stroke
190 x 40
-
CHAINSET: SRAM NX 1X X-SYNC
Chain Ring
30T
Crank Length
155mm / 49mm
- BOTTOM BRACKET: SRAM BSA 73MM
-
SHIFTERS: SRAM GX-E
Speed
1x11 speed
-
REAR DERAILLEUR: SRAM NX
Speed
11 speed
-
CASSETTE: SRAM POWERGLIDE 1130
Speed
11 speed
Ratio
11-42T
- CHAIN: SRAM PC 1110
-
BRAKES: SHIMANO DEORE
Model
BR-M6100
Brake Type
Hydraulic two piston
Rotor Size
180/180mm
- BRAKE LEVERS: SHIMANO DEORE
-
HUBS: PROMAX
Front
DR-921 sealed bearing 32H
Rear
DR-961SRS sealed bearing 32H
Brake Fitting
6-bolt
Front Axle Type
15 x 100
Rear Axle Type
12 x 142
Hole
32H
-
RIMS: JALCO HD-490
Hole
32H
Size
24''
Tubeless Ready
Yes
- SPOKES: DOUBLE-BUTTED STAINLESS STEEL
-
TYRES: MAXXIS MINION DHRII
Size
24 x 2.3
-
HANDLEBARS: RACEFACE RIDE
Width
740mm
Rise
25mm
Bar Bore
31.8mm
-
STEM: SARACEN
Length
45mm
Rise
6 degree
Clamp
31.8mm
Type
Ahead
- HEADSET: PRESTINE PT-F13
-
SEAT POST: RACEFACE CHESTER
Size
30.9mm
Length
325mm
- SADDLE: SARACEN CUSTOM CRMO MTB
- GRIPS: ODI ELITE MOTION
- EXTRAS: CUSTOM FRAME PROTECTION KIT
- COLOUR: BLACK
124
126
128
130
132
134
136
138
140
142
144
146
Please be advised that this sizing chart is designed as a rough guide to help you select the size you require. Although height is one key factor on choosing the correct size bike, there are others which are discussed in our in-depth size guide feature.
Geometry
- 1251MM
- Wheelbase
SEAT TUBE |
315mm |
|---|---|
TOP TUBE |
502mm |
FRAME REACH |
360mm |
FRAME STACK |
530mm |
HEAD TUBE |
95mm |
HEAD ANGLE |
65.0° |
SEAT ANGLE |
75.0° |
CHAINSTAY |
385mm |
BB DROP |
5mm |
WHEELBASE |
1034mm |
STAND OVER |
687mm |
