LET'S GET LOOSE! IF YOU LIVE FOR LAPS, DESTROY REAR TYRES AND ALWAYS SEND IT SIDEWAYS, YOU’RE GOING TO WANT THE ARIEL 80.

  • DESCRIPTION

      Built to party.

      If you live for laps, destroy rear tyres and always send it sideways, you're going to want the Ariel 80.

      Fun first and 27.5 for life, our take on a park bike is designed to thrive at every UK centre and even the Alps.

      This thing loves to pop off of lips, swing sideward and flick through trees. The bigger the grin on your face, the harder the Ariel 80 is going to work to keep it there.

      Our all-new, custom-butted and hydroformed 6013 aluminium frame has been put to the test by bottom-out king Matt Walker and survived to make it into production.

      Every millimetre of the 180mm of travel is designed to work hard, whether that's taking out rock chatter and braking bumps, sending the jump line or holding on for traction in loose turns.

      Our 80 model is a great chance to get all the bike, with a enough cash left over to head someplace with real mountains and push this beast to the limit.

      You'll never feel short changed on travel when charging through boulders thanks to the RockShox Zeb up front, while out back the Marzocchi Bomber CR coil deals with the aftermath.

      Shimano's new Deore drivetrain gives wide-range, 11-51 gearing with an upgraded SLX rear mech. Stopping duties are handled by the ever capable two-pot Deore brakes, matched to a 203mm rotors for added bite.

      The DT Swiss E532 rims are enduro ready, with a 30mm internal providing plenty for the 2.4 Maxxis Minion DHRII tyres to fill out onto. Both are tubeless ready - just add tape, valves and sealant.

      A RaceFace 35mm finishing kit and dropper post from KS complete a spec sheet that has no weakness - and that's without mentioning the small details.

      There's internal routing for everything - including a dropper post, superboost spacing for additional clearance and big bearings which last longer and are commonly available should you need to refresh them.

      Just don't try and stick a 29er fork up front. You’ll set off our inbuilt safety device that’ll alert everyone on PinkBike to the crimes you’re committing.

      Please note - the Saracen Ariel does not come supplied with pedals. Add some from our gear store!

  • DETAILS
    • Variant: Small
    • Weight: 16.3 kg

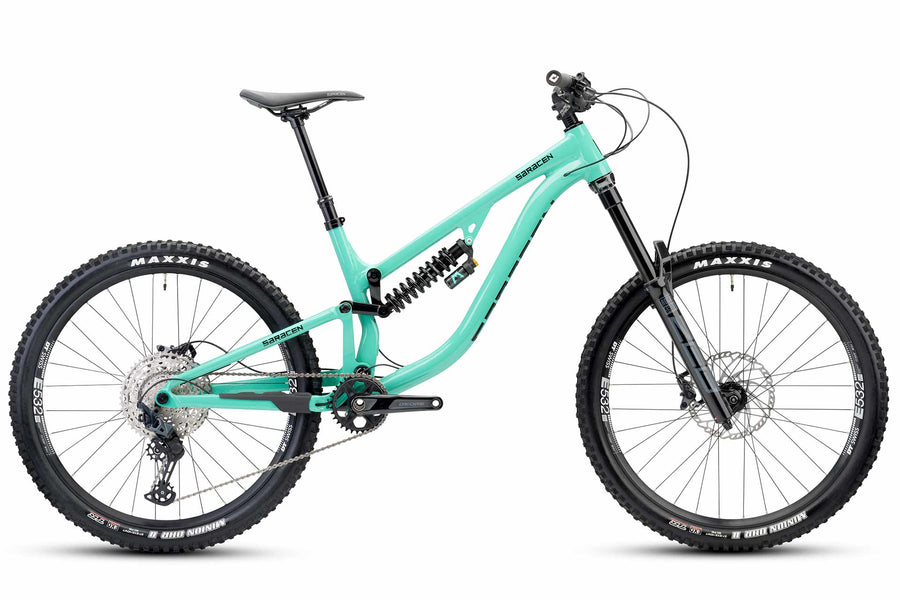

Ariel 80

£2,599.99 €3199.99

Size | SMALL

Quantity

- +

Ariel 80

£2,599.99

€3199.99

Colour

DARK GREY

Size

SMALL

Series 3 custom butted 6013

ALUMINIUM FRAME

180mm

FRAME TRAVEL

180mm

FORK TRAVEL

27.5''

WHEEL SIZE

Rockshox Zeb

FORK

Marzocchi Bomber CR

SHOCK

1 x 12 Shimano Deore/SLX

DRIVETRAIN

Download Full Specs

Full Specifications

154

156

158

160

162

164

166

168

170

172

174

176

178

180

182

184

186

188

190

192

194

196

Small
Medium
Large
XLarge

Please be advised that this sizing chart is designed as a rough guide to help you select the size you require. Although height is one key factor on choosing the correct size bike, there are others which are discussed in our in-depth size guide feature.

Geometry

1251MM
Wheelbase

Size:

SEAT TUBE

360mm

TOP TUBE

580mm

FRAME REACH

435mm

FRAME STACK

602mm

HEAD TUBE

100mm

HEAD ANGLE

63.5°

SEAT ANGLE

76.5°

CHAINSTAY

438mm

BB DROP

14mm

WHEELBASE

1207mm

STAND OVER

738mm

SEAT TUBE

360mm

TOP TUBE

607mm

FRAME REACH

460mm

FRAME STACK

610mm

HEAD TUBE

110mm

HEAD ANGLE

63.5°

SEAT ANGLE

76.5°

CHAINSTAY

438mm

BB DROP

14mm

WHEELBASE

1236mm

STAND OVER

738mm

SEAT TUBE

410mm

TOP TUBE

635mm

FRAME REACH

485mm

FRAME STACK

624mm

HEAD TUBE

125mm

HEAD ANGLE

63.5°

SEAT ANGLE

76.5°

CHAINSTAY

438mm

BB DROP

14mm

WHEELBASE

1268mm

STAND OVER

739mm

SEAT TUBE

460mm

TOP TUBE

663mm

FRAME REACH

510mm

FRAME STACK

637mm

HEAD TUBE

140mm

HEAD ANGLE

63.5°

SEAT ANGLE

76.5°

CHAINSTAY

438mm

BB DROP

14mm

WHEELBASE

1300mm

STAND OVER

739mm
