FROM THE INSTA-FAMOUS JUMP SPOTS TO YOUR LOCAL TRAILS, OUR AL ELITE HAS BEEN FLIPPED AND SENT ALL IN THE PURSUIT OF DIRT JUMP PERFECTION.
-
DESCRIPTION

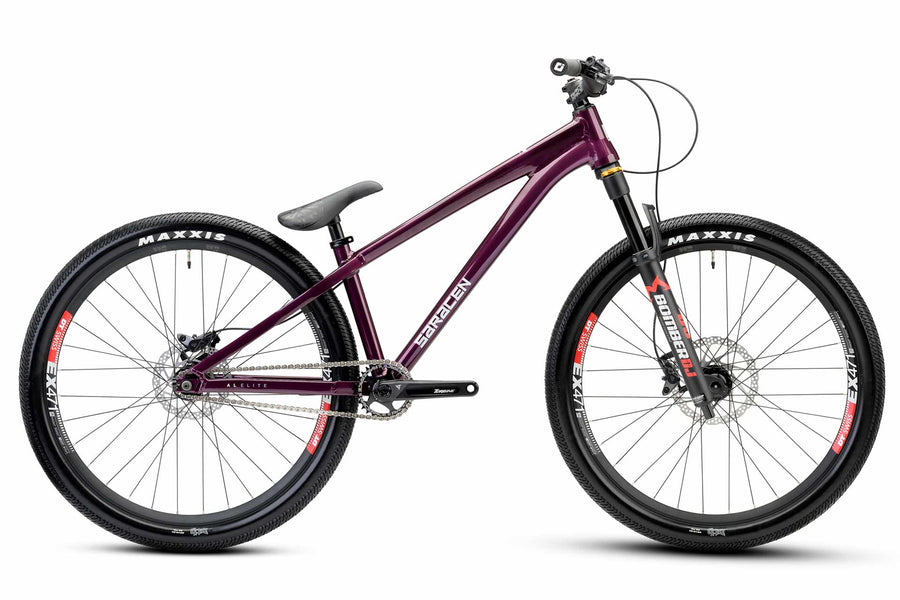

Accept no imitations. The Amplitude AL Elite is our ultimate dirt jump weapon whether you're throwing tricks or posing between runs.
The Elite level build features a Marzocchi Bomber DJ fork that majors on unbeatable stiffness, bombproof durability and the reputation of taking hard landings in its stride.
Our flagship jump bike has seen it all, from your local trails to the world's biggest kickers.
Using the same Series 3 custom butted and hydroformed 6013 alloy tubeset as our ALX frameset, this is built to last whatever you throw it off.
Shimano Deore hydraulic disc brakes keep your speed under control and the oversized 35mm RaceFace Chester cockpit beautifully matches the Turbine crank for a wonderful aesthetic.
-
DETAILS
- Weight: 12.4 kg
Series 3 custom butted 6013
ALUMINIUM FRAME
100mm
FORK TRAVEL
26''
WHEEL SIZE
Marzocchi Bomber DJ
FORK
Shimano Deore hydraulic
BRAKES
RaceFace Turbine Singlespeed
DRIVETRAIN
Full Specifications
-
FRAME: SERIES 3 CUSTOM BUTTED AND HYDROFORMED 6013 ALLOY TUBESET
Headtube
ZS44-ZS56 tapered headtube
Dropout Design
singlespeed specific
-
FORK: MARZOCCHI BOMBER DJ
Travel
100mm
Technology
GRIP damper
Axle
20mm thru-axle
-
CHAINSET: RACEFACE TURBINE
Chain Ring
28T
Crank Length
170mm
- BOTTOM BRACKET: RACEFACE SEALED BEARINGS
-
FREEWHEEL: STEEL 12T
Speed
singlespeed
- CHAIN: KMC K1
-
BRAKES: SHIMANO DEORE
Model
M6100
Brake Type
Hydraulic two piston
Rotor Size
160/160mm
- BRAKE LEVERS: SHIMANO DEORE M6100
-
HUBS: FORMULA
Front
Formula DHL-92
Rear
Formula DC-52N
Brake Fitting
6-bolt
Front Axle Type
20 x 110
Rear Axle Type
10 x 135 Nutted axle
Hole
32H
-
RIMS: DT SWISS EX471
Hole
32H
Size
26''
Tubeless Ready
No
- SPOKES: STEEL 14G
-
TYRES: MAXXIS
Model
DTH wire bead
Size
26 x 2.3
-
HANDLEBARS: RACEFACE CHESTER
Width
780mm
Rise
35mm
Bar Bore
35mm
-
STEM: RACEFACE CHESTER
Length
35mm
Rise
0 degree
Clamp
35mm
Type
Ahead
- HEADSET: FSA NO.8D
-
SEAT POST: SARACEN
Type
Integrated with saddle
Size
27.2mm
- SADDLE: SARACEN CUSTOM INTEGRATED
- GRIPS: ODI ELITE MOTION
- COLOUR: PURPLE
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
Please be advised that this sizing chart is designed as a rough guide to help you select the size you require. Although height is one key factor on choosing the correct size bike, there are others which are discussed in our in-depth size guide feature.
Geometry
- 1251MM
- Wheelbase
SEAT TUBE |
310mm |
|---|---|
TOP TUBE |
580mm |
FRAME REACH |
400mm |
FRAME STACK |
618mm |
HEAD TUBE |
115mm |
HEAD ANGLE |
68.0° |
SEAT ANGLE |
72.0° |
CHAINSTAY |
390-405mm |
BB DROP |
15mm |
WHEELBASE |
1040-1055mm |
