YOU WANT TO GO FULL ENDURO, BUT YOU WANT TO DO IT YOUR WAY. GIVE YOUR BIKE THE SAME CREATIVITY AS YOUR RIDING STYLE BY TAKING THE ARIEL 60 X FRAMESET AND MOULDING IT INTO THE ENDURO BIKE YOU’VE ALWAYS WANTED.

  • DESCRIPTION

      Go full enduro.

      Our flagship enduro bike, the Saracen Ariel 60 has been built to take on the wildest wilderness epics, bikepark laps and can of course get competitive between the tapes.

      At the heart of the all-new 160mm suspension platform is our series 3 custom-butted and hydroformed 6013 aluminium frame. Matched to the Fox Float X2 Factory shock with Kashima Coat sets out this bike's intentions.

      It's enduro-ready – and while we might not have an EWS race team, we do have Matt Walker from the Madison Saracen Factory Racing Team.

      Matt is a man who knows how to ride a bike way past the capabilities of mere mortals. The first time he rode the Ariel 60, we saw the bike shiver a little as he approached because it knew things were about to get serious.

      The testing instructions were simple: we wanted him to ride this bike as hard as he goes on his Myst but with one difference – he’d be pedalling back up the hills too.

      Now it's Matt's favourite bike to jump on, with a steep seattube and efficient suspension design helping on the way up. On the way back down, it's a riot.

      It's also easy to get the right fit on an Ariel 60. That's because it features size specific wheels, with small and medium bikes in the 29/27.5 mullet setup, and the large and extra-large sizes 29er models.

      But what if you change your mind faster than the bike industry about which wheel size is best?

      We thought of that already. Whichever Ariel 60 you choose, we've included additional push links, that you can swap out and see if the grass really is greener. All you'll need is the right size rear wheel.

      When it comes to the details, there is internal routing for everything – including a dropper post - room for a 550ml bottle, superboost spacing for additional clearance and big bearings which last longer and are commonly available should you need to refresh them.

  • DETAILS
    • Variant: Small
    • Weight: 4.3 kg

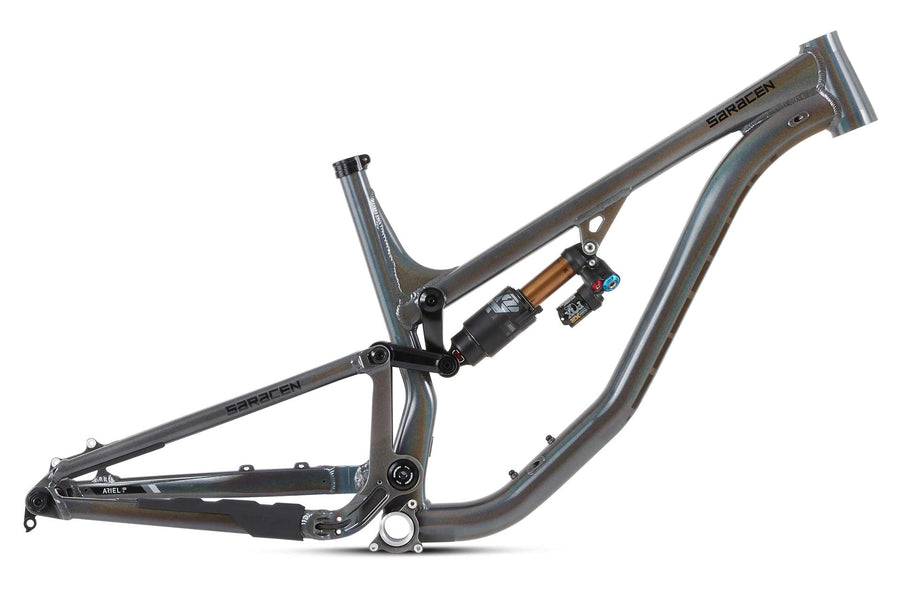

Ariel 60 X Frameset

£1,499.99

Size | SMALL

Quantity

- +

Ariel 60 X Frameset

£1,499.99

Colour

GREY

Size

SMALL

Series 3 custom butted 6013

ALUMINIUM FRAME

160mm

FRAME TRAVEL

160mm

RECOMMENDED FORK TRAVEL

Mullet or 29'' - adjustable link included

WHEEL SIZE

Fox Float X2 Factory

SHOCK

12 x 157 SuperBoost

REAR DROPOUT

BSA Threaded 73mm, 56.5mm Chain Line

BOTTOM BRACKET

Download Full Specs

Full Specifications

154

156

158

160

162

164

166

168

170

172

174

176

178

180

182

184

186

188

190

192

194

196

Small
Medium
Large
XLarge

Please be advised that this sizing chart is designed as a rough guide to help you select the size you require. Although height is one key factor on choosing the correct size bike, there are others which are discussed in our in-depth size guide feature.

Geometry

1251MM
Wheelbase

Size:

SEAT TUBE

360mm

TOP TUBE

603mm

FRAME REACH

455mm

FRAME STACK

618mm

HEAD TUBE

105mm

HEAD ANGLE

64.6°

SEAT ANGLE

76.5°

CHAINSTAY

440mm

BB DROP

27mm

WHEELBASE

1220mm

SEAT TUBE

410mm

TOP TUBE

624mm

FRAME REACH

480mm

FRAME STACK

623mm

HEAD TUBE

110mm

HEAD ANGLE

64.6°

SEAT ANGLE

76.5°

CHAINSTAY

440mm

BB DROP

27mm

WHEELBASE

1247mm

SEAT TUBE

460mm

TOP TUBE

652mm

FRAME REACH

505mm

FRAME STACK

636mm

HEAD TUBE

125mm

HEAD ANGLE

64.6°

SEAT ANGLE

76.5°

CHAINSTAY

440mm

BB DROP

27mm

WHEELBASE

1278mm

SEAT TUBE

510mm

TOP TUBE

680mm

FRAME REACH

530mm

FRAME STACK

650mm

HEAD TUBE

140mm

HEAD ANGLE

64.6°

SEAT ANGLE

76.5°

CHAINSTAY

440mm

BB DROP

27mm

WHEELBASE

1310mm
