FROM THE CONCRETE JUNGLE TO YOUR LOCAL WOODS, THE LEVARG FLAT BAR BRINGS THE FUN TO WHEREVER YOU RIDE.
-
DESCRIPTION

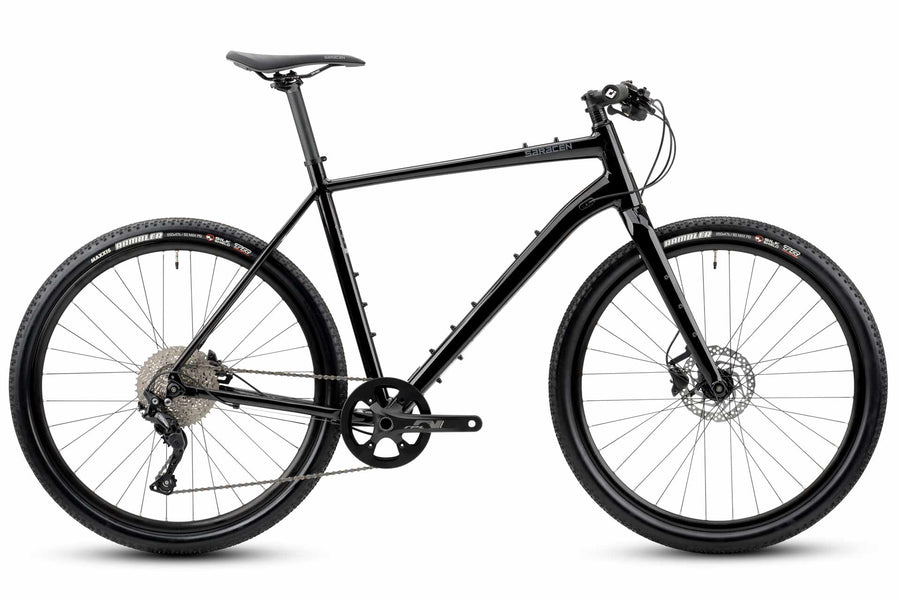

When’s a gravel bike a mountain bike? When it has flat ‘bars! The Levarg FB is designed to be the ultimate go anywhere ride, taking the city in its stride and with the versatility to hit the trails on the way home.
We’ve kept the build simple for minimal fuss and maintenance – a single ring up front and a mid-range cassette is plenty for fast blasts from the door, with the 47c (around 1.9-inch) tyres perfect for mixing parkland, paths, fireroad and singletrack.
If you want to go a bit further, you’ll find the frame is peppered with multiple mounts for bottles, guards and all your bikepacking bits.
The Series 2 custom butted and hydroformed 6061 alloy frame is matched to a UD carbon fork, with 12mm axles firmly gripping the wheels in place.
There’s a Shimano Deore rear mech working the 11-42 cassette, and hydraulic disc brakes to bring everything back under control.
The 27.5-inch wheels are matched to 47c Maxxis Rambler tubeless ready tyres, which provide the perfect combination of fast rolling and grip for forestry roads and dusty singletrack.Please note - the Saracen Levarg does not come supplied with pedals. Add some from our gear store!
-
DETAILS
- Variant: Small
- Weight: 10.74 kg
Series 2 custom butted 6061
ALUMINIUM FRAME
27.5
WHEEL SIZE
UD Carbon Tapered
FORK
Shimano Deore 1x10
DRIVETRAIN
Shimano MT-200
BRAKES
Maxxis Rambler 47c
TYRES
Full Specifications
-
FRAME: SERIES 2 CUSTOM BUTTED AND HYDROFORMED 6061 ALLOY TUBESET
Headtube
IS42-IS52 tapered headtube
Axle
12 x 142mm
-
FORK: UD CARBON
Technology
Tapered steerer / Mudguard eyelets / Gorilla cage mounts
Axle
12x100
-
CHAINSET: PROWHEEL RPL
Chain Ring
42T
Crank Length
Small 170mm, Medium/Large 172.5mm, XL 175mm
- BOTTOM BRACKET: SHIMANO BSA, 68MM
-
SHIFTERS: SHIMANO DEORE M6000
Speed
1x10 speed
-
REAR DERAILLEUR: SHIMANO DEORE M6000
Model
1x10 speed
-
CASSETTE: SHIMANO DEORE M6000
Speed
10 speed
Ratio
11-42T
- CHAIN: KMC X10
-
BRAKES: SHIMANO MT-200 OR PROMAX DSK927
Brake Type
Hydraulic 2 piston
Rotor Size
160/160mm
- BRAKE LEVERS: SHIMANO MT-200
-
HUBS: FORMULA
Brake Fitting
Center lock
Front Axle Type
12 x 100
Rear Axle Type
12x142
Hole
32H
-
RIMS: JALCO
Hole
32H
Size
27.5"
Tubeless Ready
Yes
- SPOKES: DOUBLE-BUTTED STAINLESS STEEL
-
TYRES: MAXXIS RAMBLER
Model
Silkshield TR
Size
27.5 x 47c
-
HANDLEBARS: RACEFACE RIDE FLAT
Width
710mm
Bar Bore
31.8mm
-
STEM: SARACEN ALLOY
Length
70mm
Clamp
31.8mm
Type
Ahead
- HEADSET: PRESTINE PT-1860
-
SEAT POST: SARACEN ALLOY
Size
30.9mm
- SADDLE: SARACEN CUSTOM CRMO
- GRIPS: ODI ELITE MOTION
- COLOUR: BLACK
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
Please be advised that this sizing chart is designed as a rough guide to help you select the size you require. Although height is one key factor on choosing the correct size bike, there are others which are discussed in our in-depth size guide feature.
Geometry
- 1251MM
- Wheelbase
SEAT TUBE |
490mm |
|---|---|
TOP TUBE |
560mm |
FRAME REACH |
385mm |
FRAME STACK |
572mm |
HEAD TUBE |
135mm |
HEAD ANGLE |
70.5° |
SEAT ANGLE |
73.0° |
CHAINSTAY |
425mm |
BB DROP |
68mm |
WHEELBASE |
1044mm |
SEAT TUBE |
520mm |
TOP TUBE |
585mm |
FRAME REACH |
404mm |
FRAME STACK |
590mm |
HEAD TUBE |
155mm |
HEAD ANGLE |
70.5° |
SEAT ANGLE |
73.0° |
CHAINSTAY |
425mm |
BB DROP |
68mm |
WHEELBASE |
1071mm |
SEAT TUBE |
550mm |
TOP TUBE |
610mm |
FRAME REACH |
424mm |
FRAME STACK |
609mm |
HEAD TUBE |
175mm |
HEAD ANGLE |
70.5° |
SEAT ANGLE |
73.0° |
CHAINSTAY |
425mm |
BB DROP |
68mm |
WHEELBASE |
1097mm |
SEAT TUBE |
580mm |
TOP TUBE |
635mm |
FRAME REACH |
443mm |
FRAME STACK |
628mm |
HEAD TUBE |
195mm |
HEAD ANGLE |
70.5° |
SEAT ANGLE |
73.0° |
CHAINSTAY |
425mm |
BB DROP |
68mm |
WHEELBASE |
1123mm |
