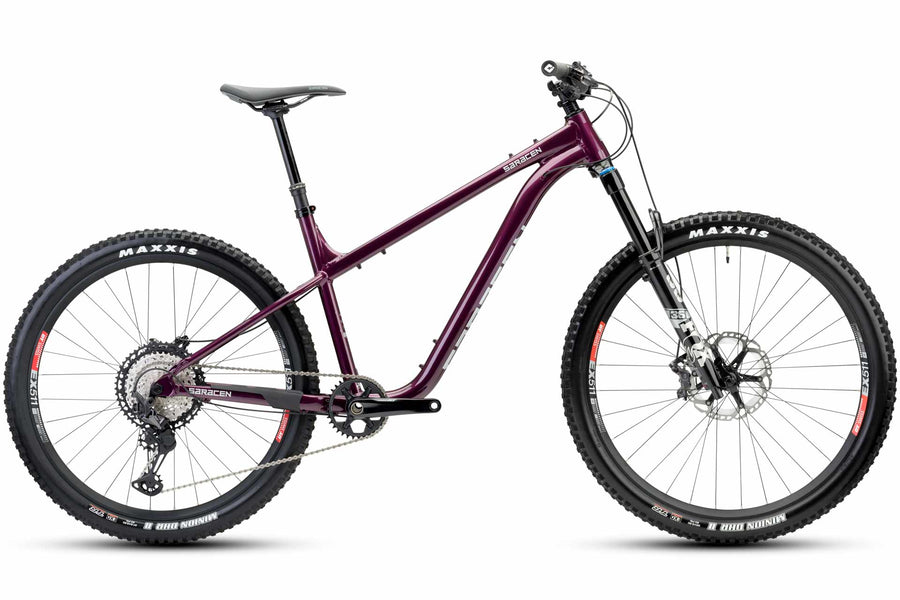

WHO SAID A HARDTAIL CAN’T BE FANCY? NOT US, BECAUSE THE MANTRA RACE IS OUR DREAM HARDTAIL BROUGHT TO LIFE!
-
DESCRIPTION
Our range-topping Race model features a wish-list of kit, with zero corners cut and plenty to drool over.
The 6061 hydroformed and butted aluminium frame is matched to our tried and tested LSL geometry, making this hardtail ready for the rowdiest descents.
The spec sheet begins with a Fox 36 Performance Elite fork providing 140mm of completely tunable, trail taming travel.That’s backed up by a Shimano XT groupset that delivers the benchmark in fast and crisp shifting across a wide-range 10-51 tooth 12-speed cassette. You’ll also find Shimano XT brakes, with four pistons for improved heat management and braking control for the longest descents.
A KS Lev Integra dropper is complimented by finishing kit from RaceFace and ODI, while DT Swiss provide their legendary EX511 rims, matched to Maxxis Minion DHRII tyres.
Best of all, the rims and tyres are tubeless ready - just add tape, valves and sealant to enjoy the full experience.Please note - the Saracen Mantra does not come supplied with pedals. Add some from our gear store!
-
DETAILS
- Variant: Small
- Weight: 14.01 kg
Series 2 custom butted 6061
ALUMINIUM FRAME
MULLET 29" FRONT 27.5'' REAR
WHEEL SIZE
Fox 36 Performance Elite
FORK
140mm
FORK TRAVEL
Shimano XT
DRIVETRAIN
Shimano XT
BRAKES
Full Specifications
-
FRAME: SERIES 2 CUSTOM BUTTED AND HYDROFORMED 6061 ALLOY TUBESET
Headtube
ZS44-ZS56 tapered headtube
Technology
Chip-Slot dropout system / dropper post ready / Long Slack Low (LSL) geometry / UK developed
Axle
12 x 148mm Boost
-
FORK: FOX 36 PERFORMANCE ELITE
Travel
140mm
Technology
Tapered steerer / HSC LSC HSR LSR adjust / Grip2 damper
Axle
15x110 Boost
-
CHAINSET: SHIMANO XT M8100
Model
32T
Chain Ring
170mm
- BOTTOM BRACKET: SHIMANO BSA, 73MM
-
SHIFTERS: SHIMANO XT M8100
Speed
1x12 speed
-
REAR DERAILLEUR: SHIMANO XT M8100
Model
12 speed
-
CASSETTE: SHIMANO XT M8100
Speed
12 speed
Ratio
10-51T
- CHAIN: KMC X12
-
BRAKES: SHIMANO XT M8120
Brake Type
Hydraulic four piston
Rotor Size
180/180mm
- BRAKE LEVERS: SHIMANO XT M8100
-
HUBS: SHIMANO XT
Front
M8100
Rear
M8110-B
Brake Fitting
Center lock
Front Axle Type
15 x 110 Boost
Rear Axle Type
12x148
Hole
32H
-
RIMS: DT SWISS EX511
Hole
32H
Size
29" front 27.5" rear
Rim Width
30mm internal
Tubeless Ready
Yes
- SPOKES: DOUBLE-BUTTED STAINLESS STEEL
-
TYRES: MAXXIS MINION DHRII
Model
Exo TR
Size
29 x 2.3 Front 27.5 x 2.3 Rear
-
HANDLEBARS: RACEFACE NEXT R CARBON
Width
780mm
Rise
35mm
Bend
6 degree
Bar Bore
35mm
-
STEM: RACEFACE TURBINE
Length
50mm
Rise
6 degree
Clamp
35mm clamp
Type
Ahead
- HEADSET: PRESTINE PT-F13
-
SEAT POST: KS LEV INTEGRA
Routing
Internal
Size
30.9mm
Length
392mm
Travel
150mm (125mm on size small)
Lever
Southpaw remote
- SADDLE: SARACEN CUSTOM CRMO MTB
- GRIPS: ODI ELITE MOTION
- COLOUR: PURPLE
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
196
Please be advised that this sizing chart is designed as a rough guide to help you select the size you require. Although height is one key factor on choosing the correct size bike, there are others which are discussed in our in-depth size guide feature.
Geometry
- 1251MM
- Wheelbase
SEAT TUBE |
360mm |
---|---|
TOP TUBE |
609mm |
FRAME REACH |
440mm |
FRAME STACK |
629mm |
HEAD TUBE |
95mm |
HEAD ANGLE |
64.0° |
SEAT ANGLE |
75.0° |
CHAINSTAY |
440mm |
BB DROP |
20/45mm |
WHEELBASE |
1201mm |
SEAT TUBE |
410mm |
TOP TUBE |
637mm |
FRAME REACH |
465mm |
FRAME STACK |
638mm |
HEAD TUBE |
105mm |
HEAD ANGLE |
64.0° |
SEAT ANGLE |
75.0° |
CHAINSTAY |
440mm |
BB DROP |
20/45mm |
WHEELBASE |
1230mm |
SEAT TUBE |
460mm |
TOP TUBE |
664mm |
FRAME REACH |
490mm |
FRAME STACK |
647mm |
HEAD TUBE |
115mm |
HEAD ANGLE |
64.0° |
SEAT ANGLE |
75.0° |
CHAINSTAY |
440mm |
BB DROP |
20/45mm |
WHEELBASE |
1260mm |
SEAT TUBE |
510mm |
TOP TUBE |
687mm |
FRAME REACH |
510mm |
FRAME STACK |
656mm |
HEAD TUBE |
125mm |
HEAD ANGLE |
64.0° |
SEAT ANGLE |
75.0° |
CHAINSTAY |
440mm |
BB DROP |
20/45mm |
WHEELBASE |
1284mm |
