IF DOUBLE-DOWNCOUNTRY WAS A THING, THIS WOULD BE THE BIKE. WELL IT IS A THING NOW, SO GET ON BOARD BECAUSE THIS IS A RIDE YOU DON’T WANT TO MISS. THE ARIEL 30 RALLIES UP, DOWN AND EVERYWHERE IN BETWEEN.

  • DESCRIPTION

      If double-downcountry was a thing, this would be the bike.

      Well it is a thing, so embrace it, you’re going to love it. The Ariel 30 rallies up, down and everywhere in between.

      From the local loam, to trail centres and natural stuff that a bike with this little travel should have no right being interested in, this is the one that can do it all.

      At the heart of it is our all-new, custom-butted and hydroformed 6013 aluminium frame.

      Designed and developed with the help of Matt Walker from our Madison Saracen Factory Racing Team, you know it's been put through the wringer and is built to last and go fast.

      Every Ariel 30 features size specific wheels, with small and medium bikes in the 29/27.5 mullet setup, and the large and extra-large sizes 29er models.

      But what if you change your mind faster than the bike industry about which wheel size is best?

      We thought of that already. Whichever Ariel 30 you choose, we've included additional push links, that you can swap out and see if the grass really is greener. All you'll need is the right size rear wheel.

      Our Pro model is our top-of-the-line, cutting weight and adding performance across every key component, to deliver the best possible performance out on the trails.

      The 130mm of travel is provided by a Fox Float DPS Performance Elite air shock featuring two position settings, with the matching 34 fork giving low and high speed compression and rebound adjustment.

      Shimano's latest SLX shifting gives a huge 10-51 range for winching up the steepest slopes, each gear crisply accessed with an XT rear mech. Stopping is handled by Magura MTS four-piston brakes, matched to 180mm rotors for added control.

      DT Swiss XM421 rims feature a 25mm internal and are laced to smooth spinning Shimano SLX hubs. Maxxis Minion DHRII tyres are spec'd as standard and along with the rims are tubeless ready - just add tape, valves and sealant.

      Finishing kit is taken care of by RaceFace, with an up to date 35mm diameter bar and stem, with the KS Rage dropper completing the package.

      When it comes to the details, there is internal routing for everything - including a dropper post - room for a 550ml bottle, superboost spacing for additional clearance and big bearings which last longer and are commonly available should you need to refresh them.

      Please note - the Saracen Ariel does not come supplied with pedals. Add some from our gear store!

  • DETAILS
    • Variant: Small
    • Weight: 14.8 kg

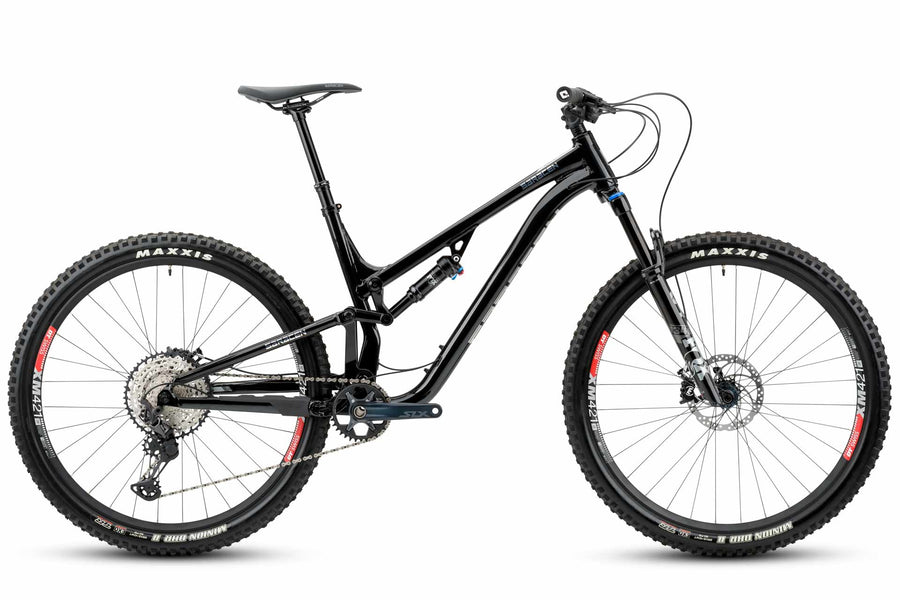

Ariel 30 Pro - Black

£3,299.99 €3899.99

Size | SMALL

Quantity

- +
Find local stockist

Ariel 30 Pro - Black

£3,299.99

€3899.99

Info

Specs

Sizing

Geo

Colour

BLACK

Size

SMALL

Series 3 custom butted 6013

ALUMINIUM FRAME

130mm

FRAME TRAVEL

130mm

FORK TRAVEL

Mullet or 29'' - adjustable link included

WHEEL SIZE

Fox 34 Performance Elite

FORK

Fox Float X Performance

SHOCK

1 x 12 Shimano SLX/XT

DRIVETRAIN

Download Full Specs

Full Specifications

Sizing

154

156

158

160

162

164

166

168

170

172

174

176

178

180

182

184

186

188

190

192

194

196

Small
Medium
Large
XLarge

Please be advised that this sizing chart is designed as a rough guide to help you select the size you require. Although height is one key factor on choosing the correct size bike, there are others which are discussed in our in-depth size guide feature.

Geometry

1251MM
Wheelbase

Size:

SEAT TUBE

 360mm

TOP TUBE

 598mm

FRAME REACH

 455mm

FRAME STACK

 595mm

HEAD TUBE

 100mm

HEAD ANGLE

 65.0°

SEAT ANGLE

 76.5°

CHAINSTAY

 440mm

BB DROP

 30mm

WHEELBASE

 1210mm

STANDOVER

 732mm

SEAT TUBE

 410mm

TOP TUBE

 625mm

FRAME REACH

 480mm

FRAME STACK

 604mm

HEAD TUBE

 110mm

HEAD ANGLE

 65.0°

SEAT ANGLE

 76.5°

CHAINSTAY

 440mm

BB DROP

 30mm

WHEELBASE

 1239mm

STANDOVER

 732mm

SEAT TUBE

 460mm

TOP TUBE

 653mm

FRAME REACH

 505mm

FRAME STACK

 618mm

HEAD TUBE

 125mm

HEAD ANGLE

 65.0°

SEAT ANGLE

 76.5°

CHAINSTAY

 440mm

BB DROP

 30mm

WHEELBASE

 1270mm

STANDOVER

 731mm

SEAT TUBE

 510mm

TOP TUBE

 682mm

FRAME REACH

 530mm

FRAME STACK

 632mm

HEAD TUBE

 140mm

HEAD ANGLE

 65.0°

SEAT ANGLE

 76.5°

CHAINSTAY

 440mm

BB DROP

 30mm

WHEELBASE

 1302mm

STANDOVER

 731mm
