NO MATTER WHAT YOU WANT TO RIDE, YOU NEED A BIKE THAT’LL TAKE EVERYTHING YOU CAN THROW AT IT AND MORE. THE CR2 IS A PERFECT INTRODUCTION TO TRAIL RIDING.
-
DESCRIPTION

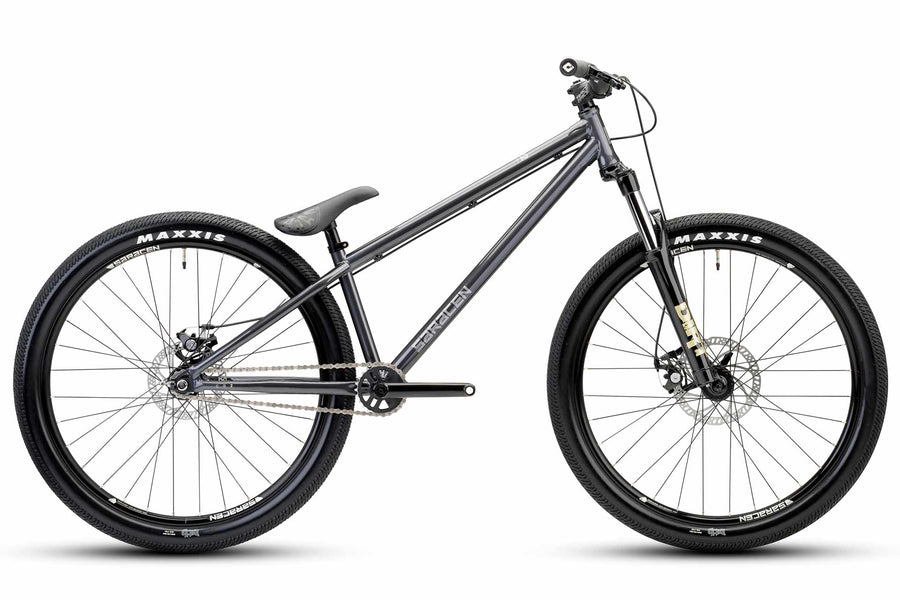

Built to last on whatever you're building to ride, the CR2 is the perfect way to start out on the trails.
The 4130 cro-mo tubeset is light enough to throw around and reacts brilliantly on the trails, sharing the same DNA as our renowned ALX you know this thing is going to rip.
Progress from tabletops to doubles – and even huge kickers – this bike has it all covered.
The RST Dirt RA fork is the ideal way to take the sting out of any misjudged landings, while the singlespeed setup keeps things simple and lets you focus on riding.
All you'll have to do is focus on nailing or bailing as you fill your bag of tricks until it's bulging. The CR2 will be there with you every step of the way.
-
DETAILS
- Variant: Medium
- Weight: 13.9 kg
Amplitude 4130 Cro-mo tubeset
CRO-MO FRAME
100mm
FORK TRAVEL
26''
WHEEL SIZE
RST Dirt RA
FORK
Tektro Cable Disc
BRAKES
25 x 12T Singlespeed Specific
DRIVETRAIN
Full Specifications
-
FRAME: AMPLITUDE 4130 CRO-MO TUBESET
Headtube
IS42-IS42 headtube
Dropout Design
singlespeed specific
-
FORK: RST DIRT RA
Travel
100mm
Technology
Rebound adjust
Axle
QR axle
-
CHAINSET: SAMOX CRO-MO 3-PC
Chain Ring
25T
Crank Length
175mm
-
BOTTOM BRACKET: MID TYPE SEALED BEARING
Type
8T spline
-
FREEWHEEL: STEEL 12T
Speed
singlespeed
- CHAIN: KMC Z1
-
BRAKES: TEKTRO
Model
MD-300
Brake Type
Cable disc
Rotor Size
160/160mm
- BRAKE LEVERS: TEKTRO RS-360
-
HUBS: FORMULA
Front
Formula DC-20N
Rear
Formula DC-52N
Brake Fitting
6-bolt
Front Axle Type
QR
Rear Axle Type
10 x 135 Nutted axle
Hole
32H
-
RIMS: JALCO DD32
Hole
32H
Size
26''
Tubeless Ready
No
- SPOKES: STEEL 14G
-
TYRES: MAXXIS
Model
DTH Wire bead
Size
26 x 2.3
-
HANDLEBARS: RACEFACE CHESTER
Width
780mm
Rise
35mm
Bar Bore
35mm
-
STEM: RACEFACE CHESTER
Length
35mm
Rise
0 degree
Clamp
35mm
Type
Ahead
- HEADSET: FSA NO.8D
-
SEAT POST: SARACEN
Type
Integrated with saddle
Size
27.2mm
- SADDLE: SARACEN CUSTOM INTEGRATED
- GRIPS: ODI ELITE MOTION
- COLOUR: GREY
154
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
Please be advised that this sizing chart is designed as a rough guide to help you select the size you require. Although height is one key factor on choosing the correct size bike, there are others which are discussed in our in-depth size guide feature.
Geometry
- 1251MM
- Wheelbase
SEAT TUBE |
300mm |
---|---|
TOP TUBE |
575mm |
FRAME REACH |
407mm |
FRAME STACK |
549mm |
HEAD TUBE |
115mm |
HEAD ANGLE |
68.5° |
SEAT ANGLE |
73.0° |
CHAINSTAY |
385/400mm |
BB DROP |
15mm |
WHEELBASE |
1043-1058mm |
SEAT TUBE |
300mm |
TOP TUBE |
590mm |
FRAME REACH |
423mm |
FRAME STACK |
549mm |
HEAD TUBE |
115mm |
HEAD ANGLE |
68.5° |
SEAT ANGLE |
73.0° |
CHAINSTAY |
385/400mm |
BB DROP |
15mm |
WHEELBASE |
1053-1068mm |
